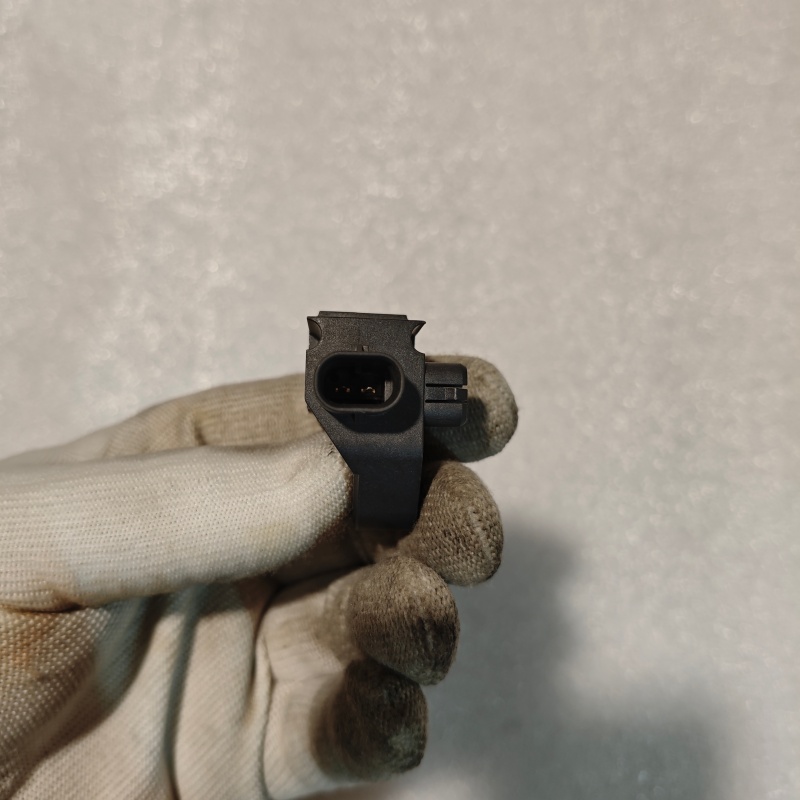

Crankshaft Position Sensor Plug

The Crankshaft Position Sensor Plug is a critical yet often overlooked component in a vehicle’s engine management system. This specialized electrical connector serves as the secure and reliable interface between the crankshaft position sensor itself and the vehicle’s main wiring harness. Its primary function is to ensure the flawless transmission of vital data signals that are essential for optimal engine performance.

This plug houses the terminals that connect to the sensor’s wiring. It is designed with a robust locking mechanism, typically a clip or tab, to prevent accidental disconnection due to engine vibration or exposure to the harsh under-hood environment. A proper seal within the connector is also paramount. This seal protects the sensitive electrical contacts from moisture, oil, dust, and extreme temperatures, which could otherwise lead to corrosion, signal interference, or a complete failure of the connection.

When this plug becomes damaged, loose, or corroded, it directly compromises the signal from the crankshaft position sensor. The engine control unit (ECU) relies on this precise signal to determine the crankshaft’s speed and rotational position. Consequently, a faulty connection can cause a range of driveability issues. Symptoms often include intermittent stalling, rough idling, hesitation during acceleration, difficulty starting, and the illumination of the check engine light. In many cases, the problem is traced not to the sensor but to its plug or wiring.

Therefore, ensuring the integrity of the Crankshaft Position Sensor Plug is a key aspect of engine maintenance and troubleshooting. When replacing a sensor, it is often recommended to inspect or renew the plug simultaneously to guarantee a perfect electrical connection and restore the engine’s precise timing and fuel injection control.
